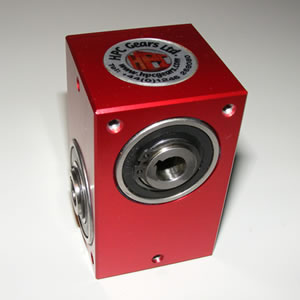

Gearboxes: Right Angled Helical Reducers



Gearboxes: Right Angled Helical Reducers
data, price & technical pdfs:

Introduction

Ratios: 1:1 - 40:1.
Case: Red anodised billet machined aluminium (6082T6).
Input Gear: 1:1 - 40:1, hardened alloy steel (655M13).
Output Gear: 1:1 - 5:1, hardened alloy steel (655M13). 8:1 - 40:1 aluminium bronze (CA104).
Bearings: High quality steel single row bearings with rubber seals.
Circlips: DIN471 steel.

Operating Temperature: Range 0ºC to 70ºC. Standard grease.

We can also produce custom made units and repair damaged gearboxes.
