Gearboxes: Heavy Duty Hardened Bevel (BLH)

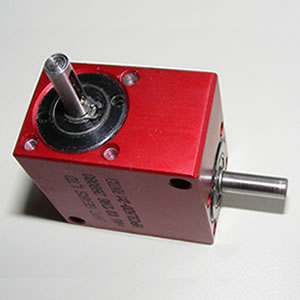

HPC Gears Gearboxes: Heavy Duty Hardened Bevel (BLH)

Gearboxes: Bevel Bore Heavy Duty
data, price & technical pdfs:

Introduction

Ratios: 1:1 - 2:1.

Case: Red anodised billet machined aluminium (6082 T6).
Bevel Shaft: Hardened alloy steel (655M13).
Bearing Caps: Mild steel with a chemically black coating.
Bearings: High quality single row ball bearings with rubber seals.

Operating Temperature: Range 0ºC to 70ºC. Standard grease.

We can also produce custom made units and repair damaged gearboxes.


Contra-Rotating gearboxes are also available.
