Fasteners: Slotted Spring Pins
FEATURES:

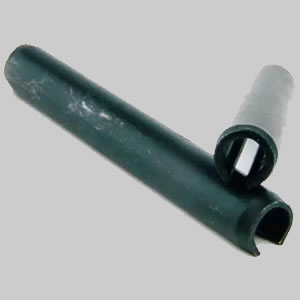

Introduction Slotted Spring Pins consist of a single coil of spring steel (or stainless steel) with an open slot sufficiently wide to enable the pin to reduce in diameter as it is driven into a hole of appropriate size. The ends of the pin have a bevelled chamfer. They are designed for plain drilled holes but a countersink makes assembly easier, especially for the ISO 8752 type. Slotted pins are supplied in the heavy duty form to ISO 8752.
Materials Carbon Steel
Stainless Steel A2
Standards ISO 8752: Heavy Duty
Finishes Slotted spring pins are supplied in plain oil finish. Steel pins may be given a protective finish such as zinc or phosphate, but care is needed to prevent the open ISO 8752 entangling in barrel plating processes.
Introduction Slotted Spring Pins consist of a single coil of spring steel (or stainless steel) with an open slot sufficiently wide to enable the pin to reduce in diameter as it is driven into a hole of appropriate size. The ends of the pin have a bevelled chamfer. They are designed for plain drilled holes but a countersink makes assembly easier, especially for the ISO 8752 type. Slotted pins are supplied in the heavy duty form to ISO 8752.
Materials Carbon Steel
Stainless Steel A2
Standards ISO 8752: Heavy Duty
Finishes Slotted spring pins are supplied in plain oil finish. Steel pins may be given a protective finish such as zinc or phosphate, but care is needed to prevent the open ISO 8752 entangling in barrel plating processes.
